Swagelok

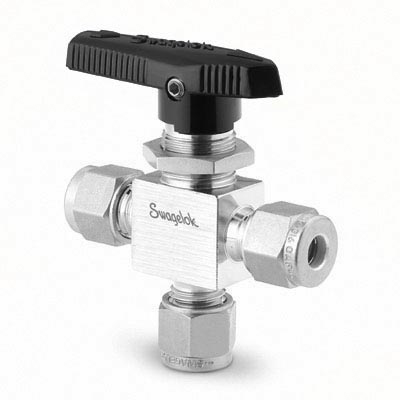

Swagelok 1-Piece 40 Series 3-Way Ball Valve, 0.15 Cv, 1/8 in. Swagelok Tube Fitting

Body Material	316 Stainless Steel
Connection 1 Size	1/8 in.
Connection 1 Type	SwagelokЎ Tube Fitting
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 2 Size	1/8 in.
Connection 2 Type	SwagelokЎ Tube Fitting
Connection 3 Size	1/8 in.
Connection 3 Type	SwagelokЎ Tube Fitting
Flow Path	Standard (3-way)
UNSPSC (SWG01)	40141607
Actuator Type	Manual
Ball/Stem Material	Stainless Steel
Flow Pattern	3-Way, Switching
Handle Color	Black
Handle Style	Lever
Lubricant	Dow M111
Max Temperature Pressure Rating	300АF @ 2500 PSIG /148АC @ 172 BAR
Orifice	0.093 in /2.4 mm
Packing	Modified PTFE
Ring/Disc Material	Stainless Steel
Room Temperature Pressure Rating	2500 PSIG @ 100АF /172 BAR @ 37АC
Testing	Testing according to WS-22
eClass (4.1)	37010401
eClass (5.1.4)	37010401
eClass (6.0)	37-01-04-01
eClass (6.1)	37-01-04-01
UNSPSC (10.0)	40141607
UNSPSC (11.0501)	40141607
UNSPSC (13.0601)	40141607
UNSPSC (15.1)	40141607
UNSPSC (4.03)	40141607
Valve Material	Stainless Steel
