Valve

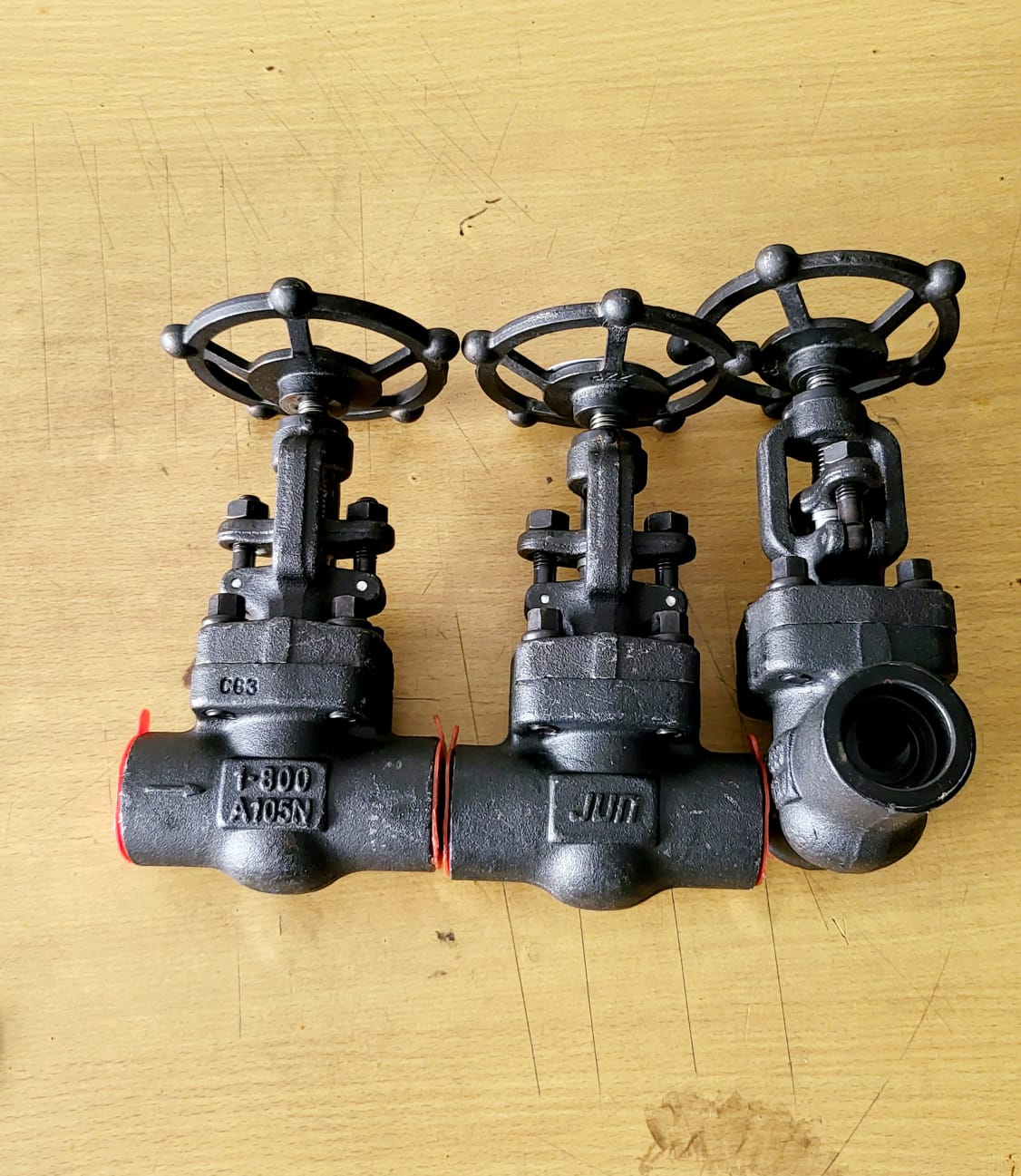

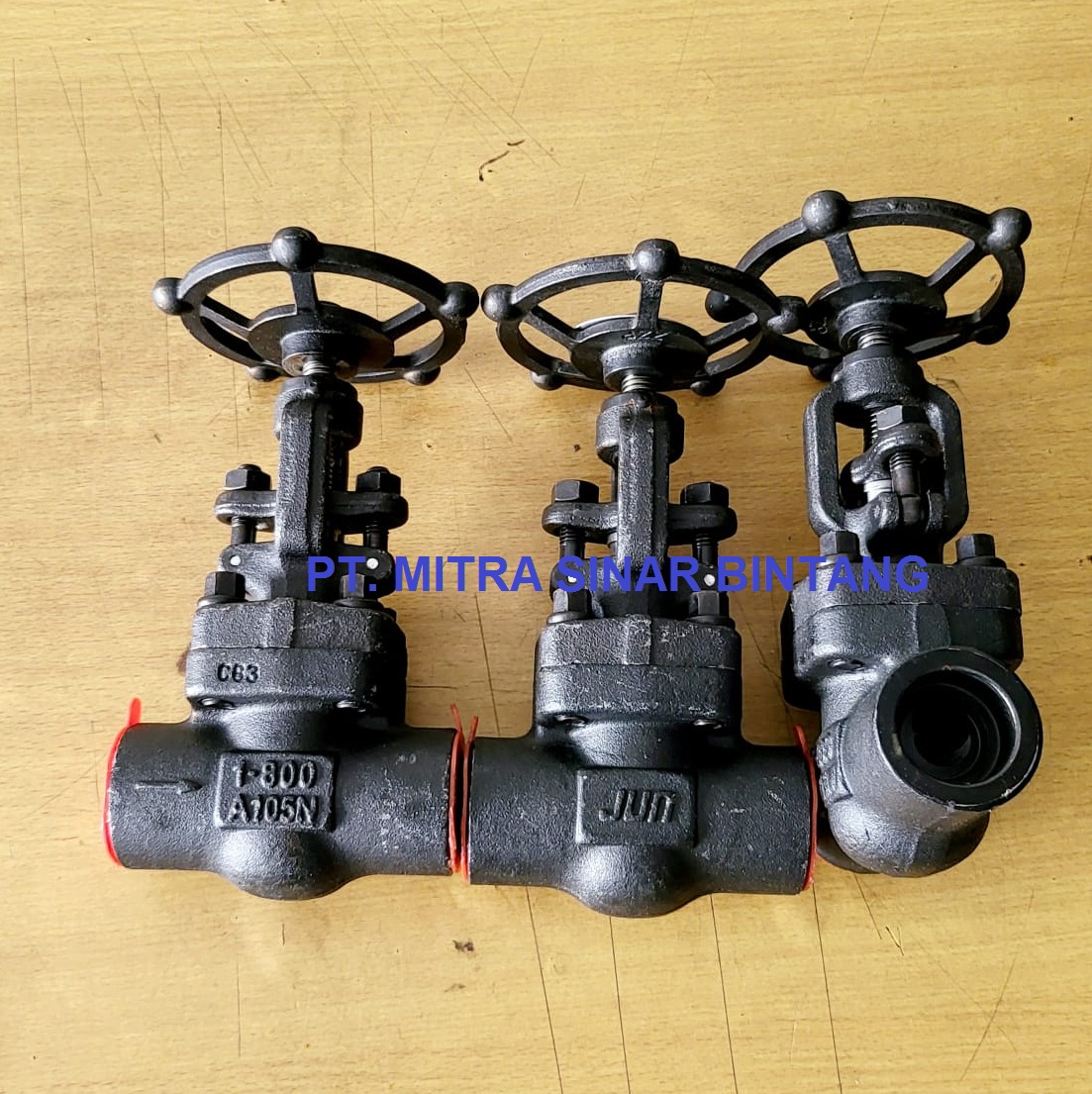

Jual Gate Valve Class 800 CS A105N GLOBE VALVE CLASS 800, 900, 1500.
Forged Steel Globe Valve, Bolted Bonnet, Outside Screw & Yoke, Rising Stem, Non-Rising handwheel. Regular & Full port, Threaded and Socket Weld ends.
Body : ASTM A182 F316L
Bonnet : ASTM A182 F316L
Seat Ring : A276-410+ STL
Wedge : ASTM A276-420
Stem : ASTM A276-410
Bonnet Bolt : ASTM A193 B7
Packing : Grafoil
Gland : ASTM A276-410
Gasket : 304 + Graphite
Gland F; ange : ASTM A216 WCB
Eye Bolt : ASTM A276-410
Eye Bolt Nut : ASTM A194 2H
Eye Bolt Pin : ASTM A276-410
Steam Nut : ASTM A108-1020
Handwheel : ASTM A197
Name Plate : Stainless Steel
Note : Other Valve Material Composition are Variable
|
