Swagelok

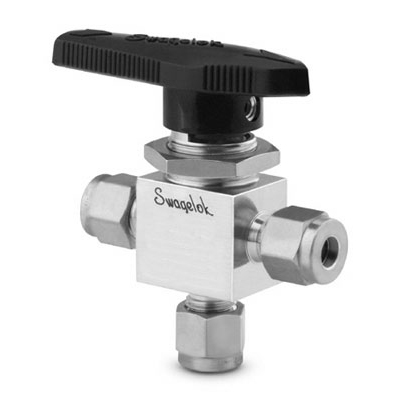

Swagelok Stainless Steel 1-Piece 40 Series 3-Way Ball Valve, 0.90 Cv, 1/4 in. Swagelok Tube Fitting | Body Material | 316 Stainless Steel | | Connection 1 Size | 1/4 in. | | Connection 1 Type | Swagelok® Tube Fitting | | Cleaning Process | Standard Cleaning and Packaging (SC-10) | | Connection 2 Size | 1/4 in. | | Connection 2 Type | Swagelok® Tube Fitting | | Connection 3 Size | 1/4 in. | | Connection 3 Type | Swagelok® Tube Fitting | | Flow Path | Standard (3-way) | | UNSPSC (SWG01) | 40141607 | | Actuator Type | Manual | | Ball/Stem Material | Stainless Steel | | Flow Pattern | 3-Way, Switching | | Handle Color | Black | | Handle Style | Lever | | Lubricant | Dow M111 | | Max Temperature Pressure Rating | 300°F @ 2500 PSIG /148°C @ 172 BAR | | Orifice | 0.187 in /4.7 mm | | Packing | Modified PTFE | | Ring/Disc Material | Stainless Steel | | Room Temperature Pressure Rating | 2500 PSIG @ 100°F /172 BAR @ 37°C | | Testing | Testing according to WS-22 | | eClass (4.1) | 37010401 | | eClass (5.1.4) | 37010401 | | eClass (6.0) | 37-01-04-01 | | eClass (6.1) | 37-01-04-01 | | UNSPSC (10.0) | 40141607 | | UNSPSC (11.0501) | 40141607 | | UNSPSC (13.0601) | 40141607 | | UNSPSC (15.1) | 40141607 | | UNSPSC (4.03) | 40141607 | | Valve Material | Stainless Steel |
|
